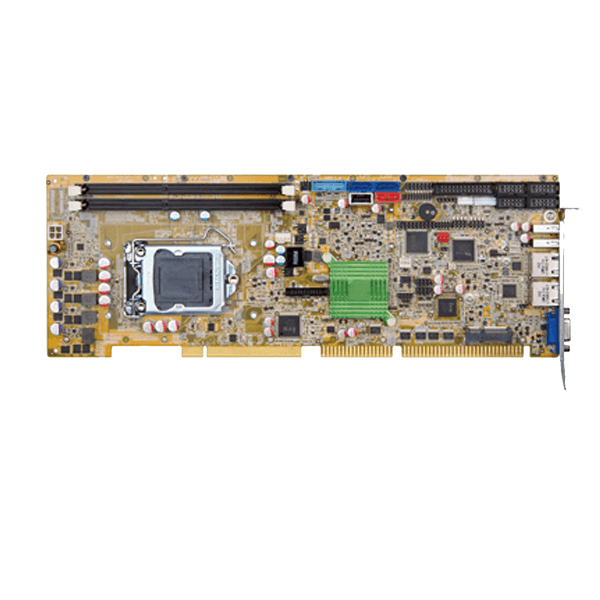

WSB-H810

Danh mục: PICMG1.0 board

Mô tả

Features
	● Full-size PICMG 1.0 with LGA1150 Intel® CPU ● Two 1600/1333 MHz DDR3 SDRAM DIMM slots support up to 16GB of memory ● Dual Intel® Gigabit Ethernet LAN controller ● SATA 6Gb/s and USB 3.0 supported ● IEI One Key Recovery solution for rapid OS backup and recovery ● TPM v1.2 hardware security function supported by TPM module ● Stiffener bars ● IEI jumper-less function

Specifications

CPU	4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
System Chipset	Intel® H81
BIOS	UEFI
System Memory	Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 16GB
Ethernet	LAN1: Intel® I217-LM Ethernet Controller LAN2: Intel® I211-AT Ethernet Controller
Digital I/O	1 x 8-bit digital I/O (2×5 pin)
TPM	1 x TPM (2×10 pin)
SMBus	1 x SMBus (1×4 pin)
Audio	7.1 channel HD Audio supported by IEI AC-KIT-892HD kit
Expansion	1 x mSATA (SATA 3Gb/s) 1 x PCIe Mini slot PCI and ISA signal via golden finger
Watchdog Timer	Software programmable supports 1~255 sec. system reset
Power Supply	5V/12V, AT/ATX support
Fan	1 x CPU smart fan (1×4 pin) 1 x System smart fan (1×3 pin)
Power Consumption	5V/12V, AT/ATX support
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-30°C ~ 70°C
Humidity	5% ~ 95%, non-condensing
Dimensions	338 mm x 122 mm
Weight	GW: 1000g / NW: 260g
LAN LED	2 x LAN LED (1×2 pin)

Ordering Information

Part No.	Description
WSB-H810-R10	Full-size PICMG 1.0 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA/iDP, Dual Intel GbE, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA, RS-232, HD Audio and RoHS
19800-000051-RS	Dual RS-232 cable, 230mm, P=2.54
32200-074800-RS	RS-422/485 cable, 200mm, P=2.0
19800-003100-100-RS	USB 2.0 cable, 300mm, P=2.54
19800-010500-200-RS	USB 3.0 cable with bracket, 457mm
19800-000075-RS	PS/2 KB/MS Y-cable with bracket, 220mm
32102-000100-200-RS	SATA power cable, MOLEX 5264-4P to SAT
32200-015100-RS	LPT flat cable, 280mm
CF-1150SE-R10	Special cooler kit for LGA1150, high-performance compatible, 95W
CF-1150SC-R10	Special cooler kit for LGA1150, 1U chassis compatible, 65W
CF-1150SB-R11	Special cooler kit for LGA1150, high-performance compatible, 65W
CF-1150SF-R10	Special cooler kit for LGA1150, high-performance compatible, 54W
DP-DVI-R10	DisplayPort to DVI-D converter board (for IEI iDP connector)
DP-HDMI-R10	DisplayPort to HDMI converter board (for IEI iDP connector)
DP-LVDS-R10	DisplayPort to LVDS converter board (for IEI iDP connector)
DP-VGA-R10	DisplayPort to VGA converter board (for IEI iDP connector)
DP-DP-R10	DisplayPort to DisplayPort converter board (for IEI iDP connector)
AC-KIT-892HD-R10	7.1 channel HD Audio kit with Realtek ALC892 supports dual audio streams
TPM-IN01-R11	20-pin Infineon TPM module, software management tool, firmware V3.17

Packing List

1 * WSB-H810 single board computer	2 * SATA cable
1 * One Key Recovery CD	1 * QIG (Quick Installation Guide)
1 * Utility CD
