Mô tả

• Features



  Waterproof front panel

  The AFL3-W22C-ULT3 has an IP64 waterproof front panel , which features a flat, sleek design to greatly reduce maintenance effort.



  Fanless and easy maintenance

  The AFL3-W22C-ULT3 is a fanless panel PC, and its heatsink is situated on the back side. This design makes the AFL3-W22C-ULT3 an easy-to-clean and reliable system for factory automation or general purpose environment



  6th generation Intel® Skylake platform

  The AFL3-W22C-ULT3 is pre-installed with Intel® Skylake Core™ i5 or Celeron® processor , to provide high performance for factory automation or variety of applications.

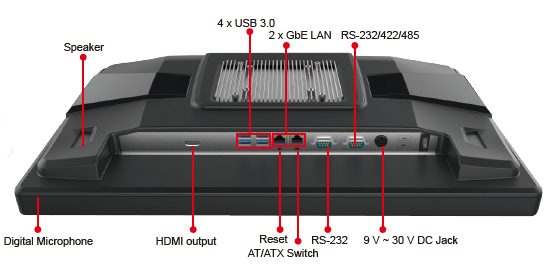

  I/O Interface



  Dimension



• Specifications

  • Hardware Spec.

    Spec Item	Description
    System
    CPU	Intel® Core™ i5 and Celeron® ULT Processor
    Storage	1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
    Communication
    Bluetooth	v4.0 (M.2 slot)
    Wi-Fi	IEEE 802.11a/b/g/n/ac
    I/O Interface
    Ethernet	2 x Intel® I211-AT PCIe GbE controller
    Audio	AMP 3W + 3W (internal speaker)
    Audio Codec	ALC892
    RAM	Two 260-pin DDR4 SO-DIMMs (system max.32GB)
    I/O Ports and Switches	1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
    Environment
    Operating Temperature	-20°C~50°C
    Humidity	10% to 95% (non-condensing)
    Storage Temperature	-20°C~60°C
    IP Level	IP 64 compliant front panel
    Physical Characteristics
    Color	Black C
    Mounting	Panel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
    Dimensions (LxWxH) (mm)	528 x 336 x 68
    Construction Front Panel	PC + ABS Plastic
    Weight
    Weight	8.27/11.27
    LCD
    Size	21.5″”
    Resolution	1920 x 1080
    Brightness (cd/m2)	250
    Contrast Ratio	1000:1
    LCD Color	16.7M
    Pixel Pitch (mm)	248.25 (H) × 248.25 (V)
    Viewing Angle (H-V)	170°(H) / 160°(V)
    Backlight MTBF	30,000 (LED backlight panel)
    Touch
    Touch Screen	Projected capacitive type with USB interface
    Touch Controller	EETI EXC3180
    Other Features
    Camera	2-megapixel with low light function
    OSD Function	Software OSD
    Microphone	digital microphone
    I/O Interface
    I/O Interface	1 x RS-422/485(DB-9 (RI/5V/12V))
    	4 x USB 3.0
    	1 x Power In(DC jack)
    	2 x LAN(GbE)
    	1 x Reset Button
    	1 x Power Switch
    	1 x AT/ATX switch
    	1 x RS-232(DB-9 (RI/5V/12V))
    	1 x HDMI

  • Ordering Info.

    Item No.	Description
    AFL3-W22C-ULT3-i5/PC/4G-R10	Wide 22” 250 cd/m² 1920×1080 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
    AFL3-W22C-ULT3-C/PC/4G-R10	Wide 22” 250 cd/m² 1920×1080 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10

  • Package Contents

    • 1 x One Key Recovery DVD
    • 4 x Round head machine screw
    • 6 x Pan head machine screw
    • 1 x Power cord
    • 1 x Power adapter
    • 1 x Driver CD
